#include <TGUI/Widgets/Slider.hpp>

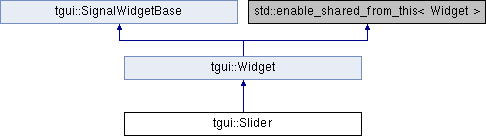

Inheritance diagram for tgui::Slider:

Public Types
typedef std::shared_ptr< Slider >	Ptr
	Shared widget pointer.

typedef std::shared_ptr< const Slider >	ConstPtr
	Shared constant widget pointer.

Public Types inherited from tgui::Widget
typedef std::shared_ptr< Widget >	Ptr
	Shared widget pointer.

typedef std::shared_ptr< const Widget >	ConstPtr
	Shared constant widget pointer.

Public Member Functions
SliderRenderer *	getSharedRenderer ()
	Returns the renderer, which gives access to functions that determine how the widget is displayed. More...

SliderRenderer *	getRenderer ()
	Returns the renderer, which gives access to functions that determine how the widget is displayed. More...

void	setSize (const Layout2d &size) override
	Changes the size of the slider. More...

Vector2f	getFullSize () const override
	Returns the full size of the slider. More...

Vector2f	getWidgetOffset () const override
	Returns the distance between the position where the widget is drawn and where the widget is placed. More...

void	setMinimum (float minimum)
	Sets a minimum value. More...

float	getMinimum () const
	Returns the minimum value. More...

void	setMaximum (float maximum)
	Sets a maximum value. More...

float	getMaximum () const
	Returns the maximum value. More...

void	setValue (float value)
	Changes the current value. More...

float	getValue () const
	Returns the current value. More...

void	setStep (float step)
	Changes the number of positions the thumb advances with each move. More...

float	getStep () const
	Returns the number of positions the thumb advances with each move. More...

void	setVerticalScroll (bool vertical)
	Changes whether the slider lies horizontally or vertically. More...

bool	getVerticalScroll () const
	Returns whether the slider lies horizontally or vertically. More...

void	setInvertedDirection (bool invertedDirection)
	Changes whether the side of the slider that is the minimum and maximum should be inverted. More...

bool	getInvertedDirection () const
	Returns whether the side of the slider that is the minimum and maximum is inverted. More...

void	setChangeValueOnScroll (bool changeValueOnScroll)
	Changes whether the mouse wheel can be used to change the value of the slider. More...

bool	getChangeValueOnScroll () const
	Returns whether the mouse wheel can be used to change the value of the slider. More...

bool	mouseOnWidget (Vector2f pos) const override
	Returns whether the mouse position (which is relative to the parent widget) lies on top of the widget. More...

void	draw (sf::RenderTarget &target, sf::RenderStates states) const override
	Draw the widget to a render target. More...

virtual void	setSize (const Layout2d &size)
	Changes the size of the widget. More...

void	setSize (Layout width, Layout height)
	Changes the size of the widget. More...

Public Member Functions inherited from tgui::Widget
	Widget ()
	Default constructor.

	Widget (const Widget &)
	Copy constructor.

	Widget (Widget &&)
	Move constructor.

	~Widget ()
	Destructor.

Widget &	operator= (const Widget &)
	Overload of copy assignment operator.

Widget &	operator= (Widget &&)
	Move assignment.

void	setRenderer (std::shared_ptr< RendererData > rendererData)
	Sets a new renderer for the widget. The renderer determines how the widget looks. More...

WidgetRenderer *	getSharedRenderer ()
	Returns the renderer, which gives access to functions that determine how the widget is displayed. More...

WidgetRenderer *	getRenderer ()
	Returns the renderer, which gives access to functions that determine how the widget is displayed. More...

virtual void	setPosition (const Layout2d &position)
	sets the position of the widget More...

void	setPosition (Layout x, Layout y)
	Sets the position of the widget. More...

Vector2f	getPosition () const
	Gets the position of the widget. More...

void	setSize (Layout width, Layout height)
	Changes the size of the widget. More...

Vector2f	getSize () const
	Returns the size of the widget. More...

virtual Vector2f	getAbsolutePosition () const
	Get the absolute position of the widget instead of the relative position to its parent. More...

virtual void	showWithEffect (ShowAnimationType type, sf::Time duration)
	Shows the widget by introducing it with an animation. More...

virtual void	hideWithEffect (ShowAnimationType type, sf::Time duration)
	Hides the widget by making it leave with an animation. More...

virtual void	setVisible (bool visible)
	Shows or hides a widget. More...

bool	isVisible () const
	Returns true when the widget is visible. More...

virtual void	setEnabled (bool enabled)
	Enables or disables the widget. More...

bool	isEnabled () const
	Returns true when the widget is enabled. More...

virtual void	setFocused (bool focused)
	Focus or unfocus the widget. More...

bool	isFocused () const
	Returns true when the widget is focused and false otherwise. More...

const std::string &	getWidgetType () const
	Returns the type of the widget. More...

Container *	getParent () const
	Returns a pointer to the parent widget. More...

bool	isAnimationPlaying () const
	Returns whether there is an active animation (started with showWithEffect or hideWithEffect) More...

virtual void	moveToFront ()
	Places the widget before all other widgets. More...

virtual void	moveToBack ()
	Places the widget behind all other widgets. More...

void	setUserData (std::any userData)
	Stores some data into the widget. More...

template<typename T >
T	getUserData () const
	Returns data stored in the widget. More...

void	setInheritedFont (const Font &font)
	Sets the font of the widget that is used when no font is set in the renderer. More...

const Font &	getInheritedFont () const
	Returns the font of the widget that is used when no font is set in the renderer. More...

void	setInheritedOpacity (float opacity)
	Sets the opacity of the widget that will be multiplied with the opacity set in the renderer. More...

float	getInheritedOpacity () const
	Returns the opacity of the widget that is multiplied with the opacity set in the renderer. More...

virtual void	setTextSize (unsigned int size)
	Changes the character size of text in this widget if it uses text. More...

virtual unsigned int	getTextSize () const
	Returns the character size of text in this widget. More...

void	setToolTip (Widget::Ptr toolTip)
	Sets the tool tip that should be displayed when hovering over the widget. More...

Widget::Ptr	getToolTip () const
	Returns the tool tip that is displayed when hovering over the widget. More...

void	setWidgetName (const sf::String &name)
	Changes the name of a widget. More...

sf::String	getWidgetName () const
	Returns the name of a widget. More...

void	setFocusable (bool focusable)
	Changes whether a widget could be focused. More...

bool	isFocusable () const
	Returns whether a widget could be focused. More...

virtual bool	canGainFocus () const
	Returns whether the widget can currently gain focus. More...

bool	isContainer () const
	Returns whether the widget is a container widget or not. More...

template<typename WidgetType >
std::shared_ptr< const WidgetType >	cast () const
	Downcast const widget.

template<typename WidgetType >
std::shared_ptr< WidgetType >	cast ()
	Downcast widget.

Public Member Functions inherited from tgui::SignalWidgetBase
template<typename Func , typename... Args, typename std::enable_if< std::is_convertible< Func, std::function< void(const Args &...)> >::value >::type * = nullptr>
unsigned int	connect (std::string signalName, Func &&handler, const Args &... args)
	Connects a signal handler that will be called when this signal is emitted. More...

template<typename Func , typename... BoundArgs, typename std::enable_if<!std::is_convertible< Func, std::function< void(const BoundArgs &...)> >::value &&std::is_convertible< Func, std::function< void(const BoundArgs &..., std::shared_ptr< Widget >, const std::string &)> >::value , ::type * = nullptr>
unsigned int	connect (std::string signalName, Func &&handler, BoundArgs &&... args)
	Connects a signal handler that will be called when this signal is emitted. More...

template<typename Func , typename... BoundArgs, typename std::enable_if<!std::is_convertible< Func, std::function< void(const BoundArgs &...)> >::value &&!std::is_convertible< Func, std::function< void(const BoundArgs &..., std::shared_ptr< Widget >, const std::string &)> >::value , ::type * = nullptr>
unsigned int	connect (std::string signalName, Func &&handler, BoundArgs &&... args)
	Connects a signal handler that will be called when this signal is emitted. More...

template<typename Func , typename... BoundArgs>
unsigned int	connect (std::initializer_list< std::string > signalNames, Func &&handler, BoundArgs &&... args)
	Connect a signal handler to multiple signals. More...

bool	disconnect (unsigned int id)
	Disconnects a signal handler. More...

void	disconnectAll (std::string signalName)
	Disconnects all signal handler from a certain signal. More...

void	disconnectAll ()
	Disconnects all signal handlers from signals.

Static Public Member Functions
static Slider::Ptr	create (float minimum=0, float maximum=10)
	Creates a new slider widget. More...

static Slider::Ptr	copy (Slider::ConstPtr slider)
	Makes a copy of another slider. More...

Public Attributes
SignalFloat	onValueChange = {"ValueChanged"}
	Value of the slider changed. Optional parameter: new value.

Public Attributes inherited from tgui::Widget
SignalVector2f	onPositionChange = {"PositionChanged"}
	The position of the widget changed. Optional parameter: new position.

SignalVector2f	onSizeChange = {"SizeChanged"}
	The size of the widget changed. Optional parameter: new size.

Signal	onFocus = {"Focused"}
	The widget was focused.

Signal	onUnfocus = {"Unfocused"}
	The widget was unfocused.

Signal	onMouseEnter = {"MouseEntered"}
	The mouse entered the widget.

Signal	onMouseLeave = {"MouseLeft"}
	The mouse left the widget.

SignalAnimation	onAnimationFinished = {"AnimationFinished"}
	A show or hide animation finished. Optional parameters: animation type, new widget visibility or both.

Protected Member Functions
Signal &	getSignal (std::string signalName) override
	Retrieves a signal based on its name. More...

void	rendererChanged (const std::string &property) override
	Function called when one of the properties of the renderer is changed. More...

std::unique_ptr< DataIO::Node >	save (SavingRenderersMap &renderers) const override
	Saves the widget as a tree node in order to save it to a file.

void	load (const std::unique_ptr< DataIO::Node > &node, const LoadingRenderersMap &renderers) override
	Loads the widget from a tree of nodes.

Widget::Ptr	clone () const override
	Makes a copy of the widget if you don't know its exact type. More...

Protected Member Functions inherited from tgui::Widget
virtual void	mouseEnteredWidget ()
	This function is called when the mouse enters the widget.

virtual void	mouseLeftWidget ()
	This function is called when the mouse leaves the widget.

Detailed Description

Slider widget.

Member Function Documentation

◆ clone()

Widget::Ptr tgui::Slider::clone ( ) const

inlineoverrideprotectedvirtual

Makes a copy of the widget if you don't know its exact type.

This function should only be used when you don't know the type of the widget. If you know what kind of widget you are copying, you should use the copy function.

Returns: Copy of the widget

Implements tgui::Widget.

◆ copy()

static Slider::Ptr tgui::Slider::copy ( Slider::ConstPtr slider )

static

Makes a copy of another slider.

Parameters

slider The other slider

Returns: The new slider

◆ create()

static Slider::Ptr tgui::Slider::create	(	float	minimum = `0`,
		float	maximum = `10`
	)

static

Creates a new slider widget.

Parameters

minimum	The minimum value of the slider
maximum	The maximum value of the slider

Returns: The new slider

◆ draw()

void tgui::Slider::draw	(	sf::RenderTarget &	target,
		sf::RenderStates	states
	)		const

overridevirtual

Draw the widget to a render target.

Parameters

target	Render target to draw to
states	Current render states

Implements tgui::Widget.

◆ getChangeValueOnScroll()

bool tgui::Slider::getChangeValueOnScroll ( ) const

Returns whether the mouse wheel can be used to change the value of the slider.

Returns: Can the slider value be changed with the mouse wheel?

◆ getFullSize()

Vector2f tgui::Slider::getFullSize ( ) const

overridevirtual

Returns the full size of the slider.

This size also takes the thumb into account as opposed to getSize which just returns the track size.

Returns: Full size of the slider

Reimplemented from tgui::Widget.

◆ getInvertedDirection()

bool tgui::Slider::getInvertedDirection ( ) const

Returns whether the side of the slider that is the minimum and maximum is inverted.

Returns: Is the direction be inverted?

The minimum is normally located on the left (for horizontal slider) or bottom (for vertical slider) side.

◆ getMaximum()

float tgui::Slider::getMaximum ( ) const

Returns the maximum value.

Returns: The current maximum value

The default maximum value is 100.

◆ getMinimum()

float tgui::Slider::getMinimum ( ) const

Returns the minimum value.

Returns: The current minimum value

The default minimum value is 0.

◆ getRenderer()

SliderRenderer * tgui::Slider::getRenderer ( )

Returns the renderer, which gives access to functions that determine how the widget is displayed.

Returns: Temporary pointer to the renderer

Warning: After calling this function, the widget has its own copy of the renderer and it will no longer be shared.

◆ getSharedRenderer()

SliderRenderer * tgui::Slider::getSharedRenderer ( )

Returns the renderer, which gives access to functions that determine how the widget is displayed.

Returns: Temporary pointer to the renderer that may be shared with other widgets using the same renderer

◆ getSignal()

Signal & tgui::Slider::getSignal ( std::string signalName )

overrideprotectedvirtual

Retrieves a signal based on its name.

Parameters

signalName Name of the signal

Returns: Signal that corresponds to the name

Exceptions

Exception when the name does not match any signal

Reimplemented from tgui::Widget.

◆ getStep()

float tgui::Slider::getStep ( ) const

Returns the number of positions the thumb advances with each move.

Returns: The current step size

See also: setStep

◆ getValue()

float tgui::Slider::getValue ( ) const

Returns the current value.

Returns: The current value

The default value is 0.

◆ getVerticalScroll()

bool tgui::Slider::getVerticalScroll ( ) const

Returns whether the slider lies horizontally or vertically.

Returns: Does the slider lie vertically?

◆ getWidgetOffset()

Vector2f tgui::Slider::getWidgetOffset ( ) const

overridevirtual

Returns the distance between the position where the widget is drawn and where the widget is placed.

This is a negative offset indicating the difference between the track and thumb position when the value equals the minimum.

Returns: Offset of the widget

Reimplemented from tgui::Widget.

◆ mouseOnWidget()

bool tgui::Slider::mouseOnWidget ( Vector2f pos ) const

overridevirtual

Returns whether the mouse position (which is relative to the parent widget) lies on top of the widget.

Returns: Is the mouse on top of the widget?

Implements tgui::Widget.

◆ rendererChanged()

void tgui::Slider::rendererChanged ( const std::string & property )

overrideprotectedvirtual

Function called when one of the properties of the renderer is changed.

Parameters

property Lowercase name of the property that was changed

Reimplemented from tgui::Widget.

◆ setChangeValueOnScroll()

void tgui::Slider::setChangeValueOnScroll ( bool changeValueOnScroll )

Changes whether the mouse wheel can be used to change the value of the slider.

Parameters

changeValueOnScroll Should the slider value be changed with the mouse wheel?

◆ setInvertedDirection()

void tgui::Slider::setInvertedDirection ( bool invertedDirection )

Changes whether the side of the slider that is the minimum and maximum should be inverted.

Parameters

invertedDirection Should the direction be inverted?

The minimum is normally located on the left (for horizontal slider) or bottom (for vertical slider) side.

◆ setMaximum()

void tgui::Slider::setMaximum ( float maximum )

Sets a maximum value.

Parameters

maximum The new maximum value

When the value is too big then it will be changed to this maximum. When the minimum value is higher than the new maximum then it will be changed to this new maximum value. The default maximum value is 10.

◆ setMinimum()

void tgui::Slider::setMinimum ( float minimum )

Sets a minimum value.

Parameters

minimum The new minimum value

When the value is too small then it will be changed to this minimum. When the maximum value is lower than the new minimum then it will be changed to this new minimum value. The default minimum value is 0.

◆ setSize() [1/3]

virtual void tgui::Widget::setSize ( const Layout2d & size )

virtual

Changes the size of the widget.

Parameters

size	Size of the widget

Usage examples:

// Give the widget an exact size
widget->setSize({40, 30});

// Give the widget a size relative to the size of its parent
widget->setSize({"20%", "5%"});

// Make the widget 50 pixels higher than some other widget and automatically resize it when the other widget resizes
widget->setSize({200, tgui::bindHeight(otherWidget) + 50});

Reimplemented from tgui::Widget.

◆ setSize() [2/3]

void tgui::Slider::setSize ( const Layout2d & size )

overridevirtual

Changes the size of the slider.

Parameters

size	The new size of the slider

Note that the VerticalScroll propery is changed by this function based on the given width and height.

Reimplemented from tgui::Widget.

◆ setSize() [3/3]

void tgui::Widget::setSize	(	Layout	width,
		Layout	height
	)

inline

Changes the size of the widget.

Parameters

width	Width of the widget
height	Height of the widget

Warning: This setSize overload must never be used from internal TGUI code or by custom widget implementations

◆ setStep()

void tgui::Slider::setStep ( float step )

Changes the number of positions the thumb advances with each move.

Parameters

step	The new step size

Precondition: The step size must be a positive value or 0. The default step size is 1, which means the slider will only use integer values between minimum and maximum. When set to 0, the slider will be able to use any floating point value between minimum and maximum. If minimum is 20, maximum is 50 and step size is set to 10, possible slider values would be 20, 30, 40 and 50.

◆ setValue()

void tgui::Slider::setValue ( float value )

Changes the current value.

Parameters

value The new value

The value can't be smaller than the minimum or bigger than the maximum. The default value is 0.

◆ setVerticalScroll()

void tgui::Slider::setVerticalScroll ( bool vertical )

Changes whether the slider lies horizontally or vertically.

Parameters

vertical Should the slider lie vertically?

This function will swap the width and height of the slider if it didn't lie in the wanted direction.

The documentation for this class was generated from the following file:

include/TGUI/Widgets/Slider.hpp

TGUI

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Member Function Documentation

◆ clone()

◆ copy()

◆ create()

◆ draw()

◆ getChangeValueOnScroll()

◆ getFullSize()

◆ getInvertedDirection()

◆ getMaximum()

◆ getMinimum()

◆ getRenderer()

◆ getSharedRenderer()

◆ getSignal()

◆ getStep()

◆ getValue()

◆ getVerticalScroll()

◆ getWidgetOffset()

◆ mouseOnWidget()

◆ rendererChanged()

◆ setChangeValueOnScroll()

◆ setInvertedDirection()

◆ setMaximum()

◆ setMinimum()

◆ setSize() [1/3]

◆ setSize() [2/3]

◆ setSize() [3/3]

◆ setStep()

◆ setValue()

◆ setVerticalScroll()
